How are solar panels made? The process starts with raw silicon and includes several key stages, such as refining, wafer creation, and assembling the final panel. With our guide, you’ll learn how these steps turn raw materials into energy-producing devices.

Getting to Know About Solar Panels

Photovoltaic cells, commonly referred to as solar panels, are designed to transform light from the sun into electrical energy. These devices consist of several individual solar cells that serve as the core elements for converting sunlight into electricity.

Silicon is the primary substance used in these cells and acts as a vital agent due to its semiconductor properties. The efficiency of silicon can be enhanced by adding other substances like gallium, boron, and phosphorus, which improve its ability to conduct electricity.

A typical crystalline silicon solar panel includes key materials such as silicon itself alongside metal components, glass cover sheeting and plastic parts. While only making up approximately 5% of the overall mass of a panel, silicon remains an essential ingredient.

Conversely, glass predominates at about 76%, offering protection while allowing sunlight through. Structural stability is provided by aluminium frames constituting around 8% of total weight—despite silver being present merely in minute quantities (about 20 grams per unit), it plays an important role because it’s expensive.

Plastics comprise nearly one-tenth of the portion, serving both structural security purposes on the backside plus enhancing lifespan durability.

The process by which solar panels yield electric power lies within their embedded ability to leverage the photovoltaic effect: upon exposure, direct sunlight photons onto layers embedded containing silicone atoms stimulate electron movements, thereby inducing flow current with cell metallic pathways route subsequently towards downstream DC-to-AC converter appliance whereupon making alternative currents suitable domestic commercial applications use.

Active operational state reveals clear demonstration clever integrative utilisation array distinct compositions amalgamated together optimise ample capture sol’s inexhaustible supply vitality translating effectively service mankind requisites convenience luxury alike thus embodying culmination exemplary inventive prowess craftsmanship.

The Journey from Sand to Solar Cells

The journey of creating solar panels begins with silicon, a material primarily obtained from mined quartz and sandstone. These raw materials undergo various purification processes to yield high-quality silicon suitable for solar applications. The process ensures that impurities are removed, significantly improving the performance of silicon in solar cells.

This journey can be broken down into three main stages: refining silicon, creating silicon ingots, and slicing silicon wafers.

Refining Silicon

Silicon ranks as the earth’s second most abundant element, which makes it an excellent choice for manufacturing solar cells. The refinement process of silicon commences with its exposure to temperatures around 1,410 degrees Celsius inside an arc furnace.

This technique, commonly referred to as the carbon arc method, results in metallurgical-grade silicon that is approximately 99% pure. Additional purification steps are needed to achieve the superior purity level of pure silicon necessary for crafting solar cell components.

In order to tailor the electrical properties required for solar cells, the purified silicon undergoes a doping procedure leading to two variants: N-type and P-type silicon. N-type silicon emerges by integrating elements such as phosphorus that possess one extra electron compared with silicone atoms.

Conversely, P-type arises through incorporating elements like boron or gallium into the mix – these have one fewer electron than those found within silicate structures themselves, thus enabling the increased presence and movement freedom among electrons essential to electricity production throughout different types associated with photovoltaic technologies.

Creating Silicon Ingots

After undergoing purification and doping, silicon is melted down and cast into cylindrical structures termed silicon ingots. This involves liquefying the substance within a crucible and allowing it to cool slowly until it solidifies into an ingot shape.

At this juncture, boron is incorporated with the silicon in order to establish a specific polarity essential for optimal solar cell operation, thereby equipping the silicon with the appropriate electrical characteristics necessary for effective energy conversion.

The production of these silicon ingots stands as a vital phase within the process of creating solar panels. Serving as foundational elements for subsequent slicing into silicon wafers, these ingots are ultimately processed into functioning solar cells.

It’s imperative that they possess high purity levels and be devoid of imperfections so that they contribute positively to the performance efficiency of eventual solar cells in harnessing sunlight effectively.

Slicing Silicon Wafers

Once the process of creating silicon ingots is completed, they are transformed into thin disk-like slices called wafers. The wafer’s slimness is such that its thickness can be likened to that of a sheet of paper. Precision in slicing these silicon ingots into delicate slivers is achieved by employing a wire saw.

To boost the performance of solar cells, an anti-reflective coating gets applied onto the surface of these thin silicon wafers. By doing so, it curtails the reflection rate at which sunlight bounces off from their surfaces, thereby enabling greater absorption and conversion rates for light into electrical energy—a critical enhancement step for optimising solar cell efficiency.

Crafting Solar Cells

During the solar panel production sequence, silicon wafers are transformed into functional solar cells. This entails a series of treatments for the wafers that incorporate adding metallic conductors and executing phosphorus diffusion.

The efficacy of a solar cell is determined by both the materials selected and the nature of charges present within the silicon wafers. These charges include positive ones originating from boron, as well as negative ones deriving from phosphorous elements.

Doping and Coating

In the production of N-type solar cells, phosphorus is introduced to silicon wafers during the doping process. This combination increases free electrons in the material, which is essential for effective electricity production.

Subsequently, an anti-reflective coating is applied to these wafers. Without this layer, over 30% of light could be reflected off silicon solar cells, greatly diminishing their effectiveness. The combined actions of doping with phosphorus and applying an anti-reflective coat are vital for enhancing the efficiency of solar cells by reducing reflection and facilitating better electron movement.

Adding Metal Contacts

Metal connectors play a vital role in the operation of solar cells, as they are responsible for gathering the electrical energy produced. By being imprinted onto the solar cells, these contacts establish critical electrical connections that facilitate the effective movement of electric current.

These metal contacts interconnect individual cells to form an integrated network that creates essential electrical circuits needed for a functioning solar panel.

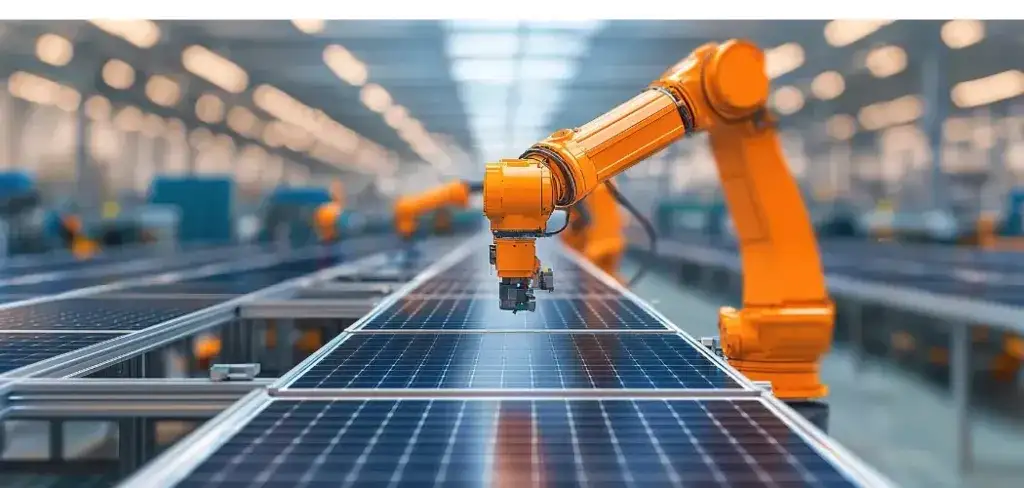

Assembling Solar Panels

The construction of solar panels entails linking together individual solar cells, layering distinct materials, and incorporating essential components that guarantee the panel’s robustness and performance. This assembly process encompasses framing, establishing connections between cells, cell encapsulation for protection, and fitting a junction box to control the electrical output.

Connecting Solar Cells

To assemble a solar panel, individual solar cells are soldered to one another. This creates a network of interconnected cells using metal connectors that facilitate the effective transfer of electrical current.

In this process, photovoltaic welding tape is utilised, consisting of busbars and interconnection strips that serve to connect the cells together and enable the movement of electricity they produce.

Layering and Encapsulation

The construction of solar panels includes a tempered glass layer, key for its role in allowing more than 93% light transmission, thereby boosting the performance of the solar cells within. Ethylene-vinyl acetate (EVA) is utilised as an encapsulating material that safeguards and stabilises solar cells.

To shield the bottom part of these cells from various environmental elements, a back sheet is incorporated into the design of the solar panel.

Collectively, these components are pivotal in maintaining both resilience and effectiveness in thin-layered solar panels.

Installing the Junction Box

The junction box is an essential element of solar panels, tasked with protecting electrical connections and facilitating the effective transfer of electricity. It has been constructed to endure a range of environmental conditions, offering both security and dependability to the entire system’s operation.

Testing and Quality Control

Before being dispatched to customers, solar panels produced are subjected to thorough examinations to ascertain their quality, performance capability, and robustness. These evaluations confirm that the solar panels can endure severe weather situations and typical deterioration over time while continuing to deliver an efficient output of electrical current.

In Australia, the Clean Energy Council grants accreditation to newly manufactured solar panels, thereby bolstering their trustworthiness.

Standard Testing Conditions (STC)

STC testing ensures consistent and objective performance measurements across different solar panels. These parameters include 1000W/m2 irradiance, a cell temperature of 25°C, and an air mass of 1.5g.

Standard Testing Conditions (STC) refer to a set of controlled parameters used to evaluate solar panel performance.

Nominal Operating Cell Temperature (NOCT)

Testing the Nominal Operating Cell Temperature (NOCT) is essential for assessing the efficiency of solar panels in conditions that mirror actual usage. The NOCT test replicates common environmental factors, including a sunlight intensity of 800W/m2, an ambient temperature of 20°C, and a breeze moving at 1m/s.

By employing this method, it becomes possible to gain a more accurate insight into how solar panels will perform during typical operation.

Types of Solar Panels

The market offers various kinds of solar panels, each distinguished by its specific features and levels of efficiency. The primary categories include monocrystalline, polycrystalline, and thin-film solar panels.

Each type undergoes a distinct manufacturing process that influences not only their efficiency but also their cost-effectiveness and appropriateness for different uses.

Monocrystalline Solar Panels

Monocrystalline solar panels are known for their high efficiency, reaching around 20%, making them ideal for commercial settings. These monocrystalline solar panels are produced from a single crystal of silicon, which contributes to their high efficiency and uniform appearance.

PERC technology enhances their efficiency by adding a reflective layer to the cells, allowing better utilisation of sunlight.

Polycrystalline Solar Panels

By fusing several silicon crystals, polycrystalline solar panels are manufactured, which gives them their characteristic speckled blue look. These panels are typically produced more rapidly and at a lower cost compared to the manufacturing process of monocrystalline panels.

Thin-Film Solar Panels

Thin film solar panels have seen an improvement in their functionality through the use of transparent conductive oxides (TCOs), which are doped metal oxides. These types of panels exhibit efficiencies between 7% and 13%. The growing interest in thin-film solar cells has prompted more research and development efforts to advance this technology.

To boost performance, HJT (heterojunction with intrinsic thin layer) solar cells integrate traditional solid silicon wafers with advanced thin-film solar technology.

Environmental Impact of Solar Panel Manufacturing

Considering the environmental footprint of solar panel production is essential. The manufacturing process for these panels typically requires an energy input equivalent to what they will produce in about three years to balance out the carbon emissions incurred during production.

Nevertheless, the carbon emissions associated with producing solar panels are considerably less than those resulting from conventional fossil fuel sources such as coal, oil, and gas.

During their initial operational phase, solar panels emit roughly 50 grams of CO2 per kilowatt-hour of electricity generated. Given their expected service life ranging between 30 and 40 years, they eventually produce significantly more energy than was expended in terms of emissions during fabrication.

The specific carbon footprint associated with creating a solar panel can differ based on various factors, including how it’s produced and which forms of energy are utilised within different countries’ manufacturing processes.

Emerging Technologies in Solar Power

Innovations in solar technology are poised to significantly boost the effectiveness and adaptability of both traditional solar panels and solar thermal panels.

Breakthroughs like the use of graphene coatings, known for their exceptional heat dispersion qualities that help sustain panel efficiency by swiftly dissipating heat, along with the development of light and pliant panels, could potentially transform how we harness solar energy. The challenge now is to refine manufacturing techniques for materials such as graphene so they can be produced at scale while staying cost-efficient.

Another notable technological advancement within this realm is PERC (Passivated Emitter and Rear Cell) technology, which incorporates an extra layer designed to reflect any photons not initially absorbed back into the cell, thereby enhancing overall panel efficiency.

These cutting-edge developments, coupled with continued research efforts, signify a robust commitment to advancing the field of solar power, ensuring it remains vibrant and progressive.

Solar Panel Manufacturing - Final Verdict

To encapsulate, the production of solar panels is an intricate process that merges sophisticated technology with precise manufacturing techniques. The procedure starts with purifying silicon and proceeds through to the meticulous creation of solar cells and their assembly into complete units.

These varying types of solar panels provide a range of efficiencies at different price points to meet assorted requirements and uses. Solar power stands out as an eco-friendly option due in part to continuous advancements in solar technology, positioning it as a viable path toward sustainability.

Adopting this form of renewable energy contributes significantly to minimising our carbon footprint, steering us towards a greener future powered by cleaner energy sources.

Frequently Asked Questions

What materials are used in solar panels?

Primarily composed of silicon, which is the core element in solar cells, along with materials like metal, glass, and plastics, solar panels rely on this mix to achieve their effectiveness and longevity.

How is silicon refined for use in solar panels?

Silicon is refined for solar panels by heating it in an arc furnace to around 1,410°C, resulting in metallurgical-grade silicon with approximately 99% purity.

This purification process is essential for achieving the quality needed for solar energy applications.

What is the role of doping in solar cell manufacturing?

Doping plays a big role in solar cell manufacturing by introducing elements such as phosphorus to silicon, which increases the availability of free electrons and improves electricity generation efficiency.

This process is essential for producing effective N-type solar cells.

How are solar panels tested for quality and efficiency?

To ensure that solar panels meet performance and durability benchmarks, they undergo thorough testing for quality and efficiency. These evaluations are conducted under Standard Testing Conditions (STC) as well as Nominal Operating Cell Temperature (NOCT).

What are the environmental benefits of solar power?

Solar power provides substantial environmental benefits by drastically reducing carbon emissions compared to fossil fuels, with only about 50 grams of CO2 produced per kilowatt-hour.

Over their 30 to 40-year lifespan, solar panels generate significantly more energy than the emissions incurred during their production.
